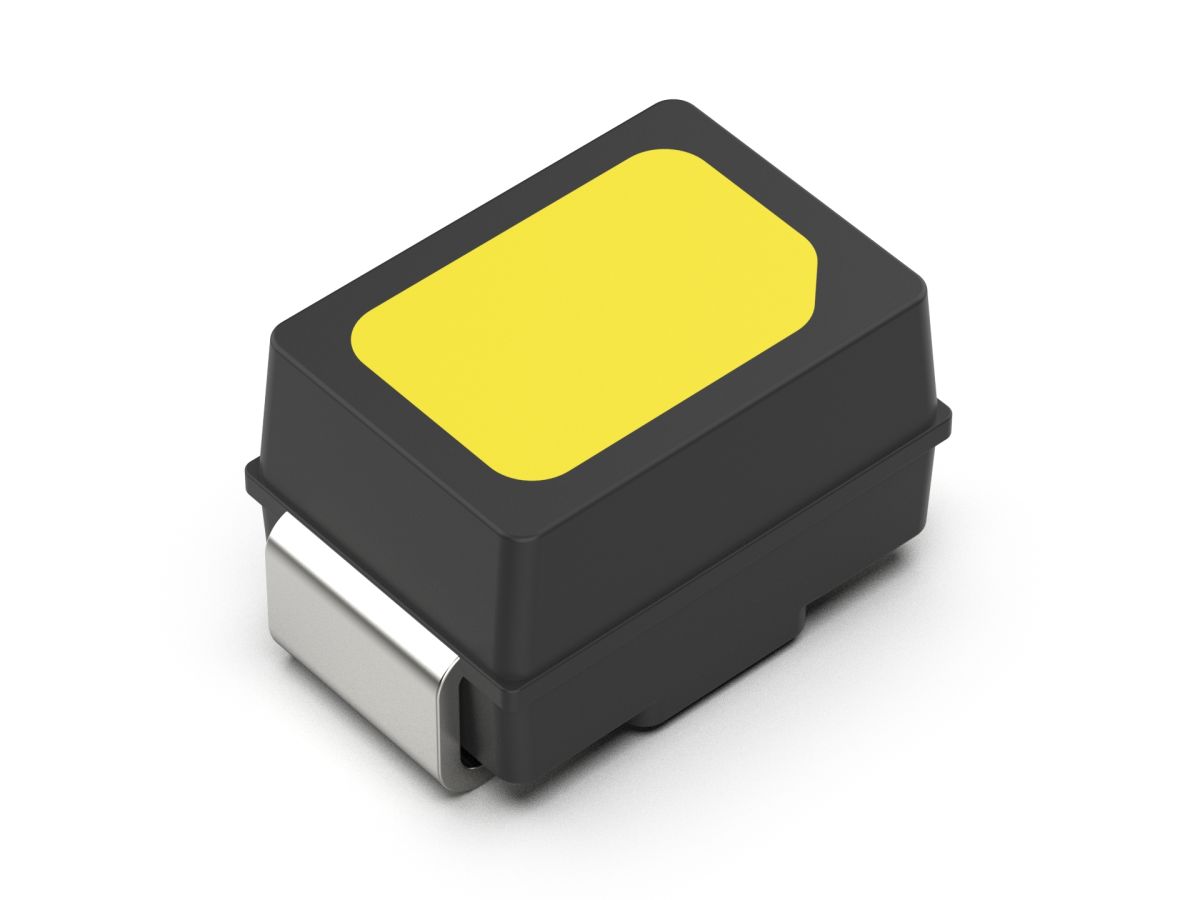

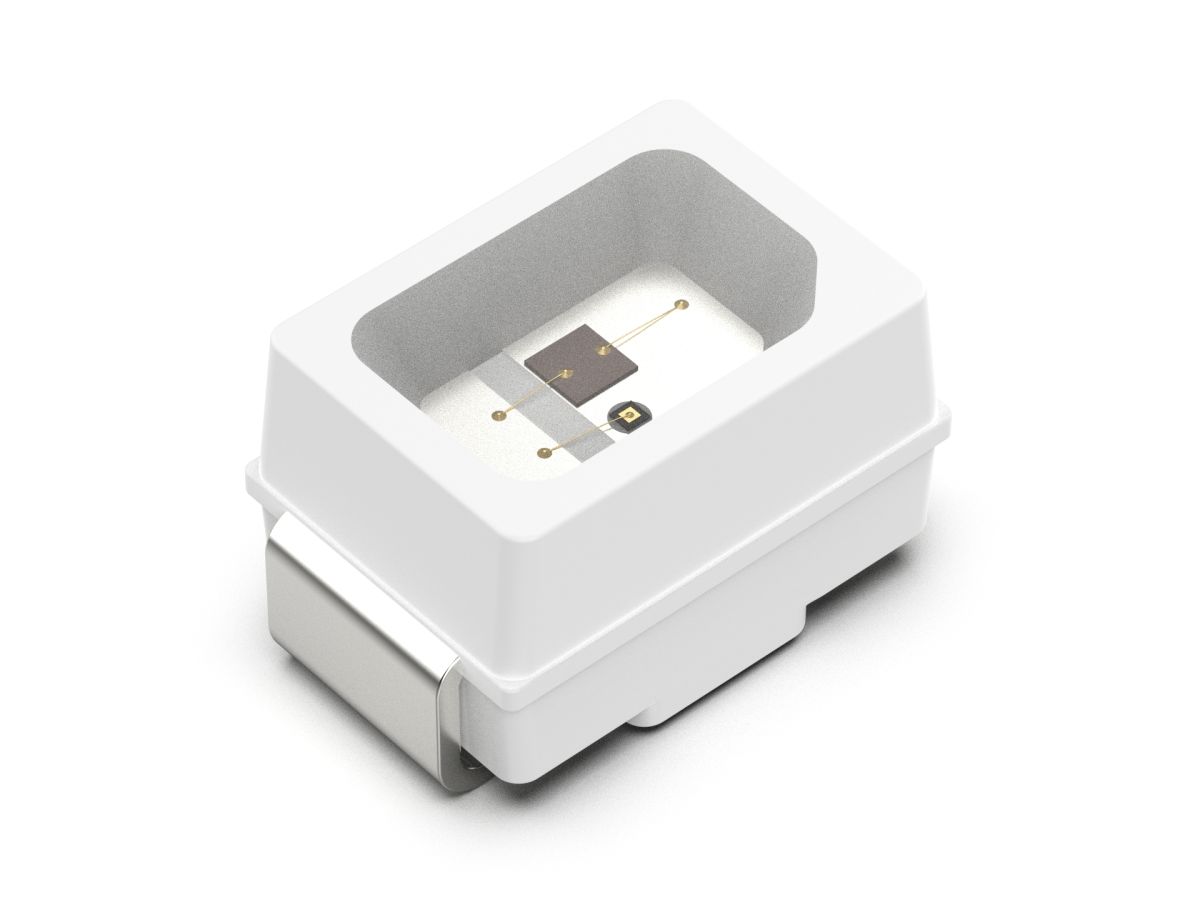

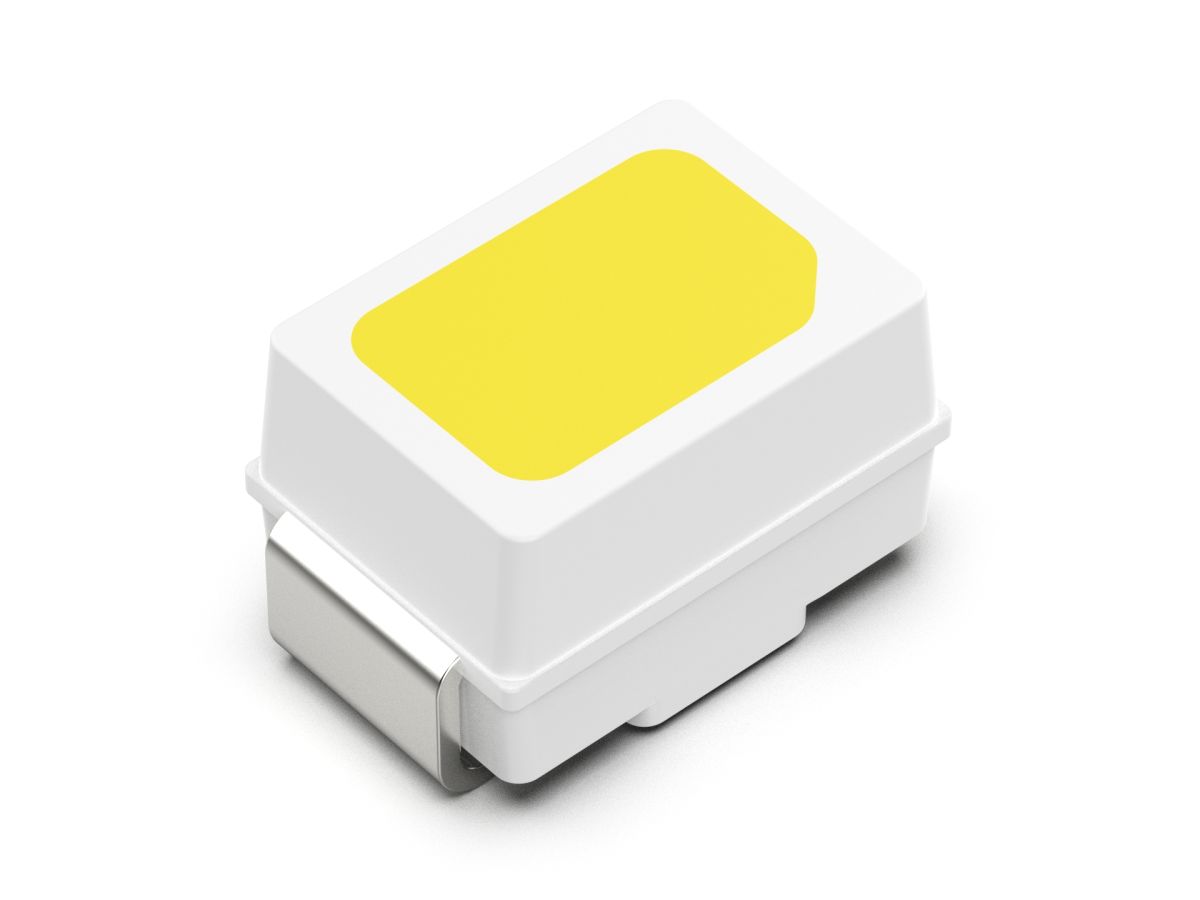

2014 (2.2*1.4*1.3mm)

Product Parameters

Product	Power	Color	Ta @25℃(TYP.)				Max current (mA)	viewing angle （°）	ESDwithstand voltage()HBM	automotie standard
Product	Power	Color	IF(mA)	vf(V)	Flux/Iv	XY/Wd	Max current (mA)	viewing angle （°）	ESDwithstand voltage()HBM	automotie standard
RF-WMRB14DS-GG-Z	0.06W		20	2.8-3.4	430-530-650-800	TC7/TC8/TC9（0.3103,0.2975）	30	120	8000	AEC-Q101
RF-WMRB14DS-FL-BZ	0.06W	White	5	2.8-3.4	180-230-280-350	PN7/PN8/PN9 （0.3177,0.306）	30	120	8000	AEC-Q101
RF-A1P14-W892-A11	0.06W	White	5	2.5-3.1	43-53-65	TG1/TG2/TG3 （0.2805,0.294）	30	120	8000	AEC-Q101
RF-A1P14-W195-A11	0.06W	White	20	2.8-3.4	385-430-475-530	W9C/W9D/W9E/W9F (0.2786,0.2857)	30	120	8000	AEC-Q101
RF-A1P14-W122-A11	0.06W	White	5	2.5-3.1	230-280-350-430	R00/R01/R02/R0A (0.2807,0.2737)	30	120	8000	AEC-Q101
RF-BWRB14DS-FW-BZ	0.06W	White	5	2.5-3.1	230-280-350-430-530	UC1UC2UC3 (0.264,0.247)	30	120	8000	AEC-Q101
RF-BWRB14DS-BS-Z	0.06W	White	20	2.8-3.4	1200-1500-1800-2300	LLC LLD LLE （0.2205,0.211）	30	120	8000	AEC-Q101
RF-A1P14-WBF2-A2	0.06W	White	5	2.5-3.1	230-280-350-430	LS11/LS21/LS31 （0.2202,0.188）	30	120	8000	AEC-Q101
RF-A1P14-WB12-A2	0.06W	White	5	2.5-3.1	350-430-530-650	LLO LLA LLB （0.2145,0.2）	30	120	8000	AEC-Q101
RF-A1P14-WBA5-A3	0.06W	White	20	2.8-3.4	800-1000-1200-1500	TC1/TC2/TC3 （0.2027,0.1724）	30	120	8000	AEC-Q101
RF-A1P14-WA52-A4	0.06W	White	5	2.5-3.1	180-230-280-350	BB5/BB6/BB7 （0.1559,0.08）	30	120	8000	AEC-Q101
RF-A1P14-W455-A4	0.06W	White	20	2.5-3.1V	1800-2300-2800-3500	UB1/UB2/UB3 （0.359,0.348）	30	120	8000	AEC-Q101
RF-WNRB14DS-WW-Z	0.06W	White	20	2.5-3.1V	1500-1800-2300-2800	UB4/UB5/UB6 （0.377,0.378）	30	120	8000	AEC-Q101
RF-WMRB14DS-WY-CZ	0.06W	PC Amber	10	2.6-3.2	530-650-800-1000	Y0 （0.54,0.44）	30	120	8000	AEC-Q101
RF-WMRB14DS-WY-F	0.1W	PC Amber	30	2.7-3.0	2300-3500	5E （0.572,0,417）	30	120	2000	AEC-Q101
RF-IMRB14DS-AA-Z	0.06W	PC Amber	20	2.7-3.2	1650-1800-2050-2300	IA7/IA8/IA9 （0.4505,0.415）	30	120	8000	AEC-Q101
RF-OMRB14TS-AK	0.04W	Red	20	1.8-2.4	800-1000-1200	612.5-615-617.5-620	30	120	2000	AEC-Q101
RF-OMRB14TS-AA	0.04W	Red	20	1.8-2.4	800-1000-1200-1500	617.5-620-622.5-625	30	120	2000	AEC-Q101
RF-RSRB14TS-BB	0.04W	Red	20	1.8-2.4	530-650-800-1000	627.5-630-632.5-635	30	120	2000	AEC-Q101
RF-RSRB14TS-RS	0.04W	Red	20	1.8-2.4	350-430-530-650	627.5-630-632.5-635	30	120	2000	AEC-Q101
RF-AURB14TS-AA-B	0.04W	Orange	5	1.7-2.3	65-80-100-120	602.5-605-607.5-610.0	30	120	2000	AEC-Q101
RF-YMRB14TS-BB	0.04W	Yellow	20	1.8-2.4	650-800-1000-1200	584.5-587-589.5-592-594.5	30	120	2000	AEC-Q101
RF-A14N-YDE-H23	0.04W	Yellow	20	1.8-2.4	230-280-350-430	585-587.5-590-592.5-595	30	120	2000	AEC-Q101
RF-GNRB14TS-CF	0.06W	Green	20	2.8-3.4	800-1000-1200-1500	515-517.5-520-522.5-525	30	120	2000	AEC-Q101
RF-BNRB14TS-AK-Z	0.06W	Blue	20	2.8-3.4	350-430-530-650	465-467.5-470-472.5	30	120	8000	AEC-Q101
