3535 PLCC6

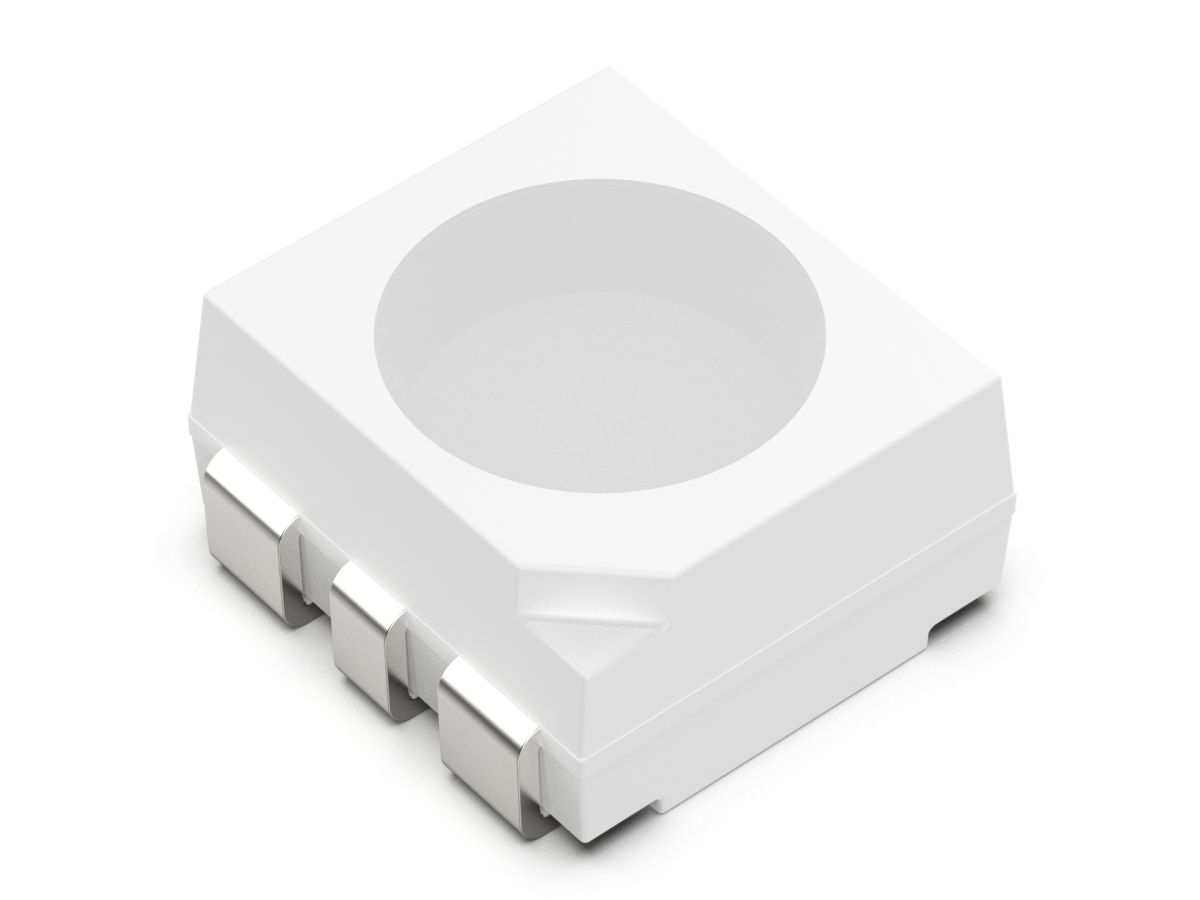

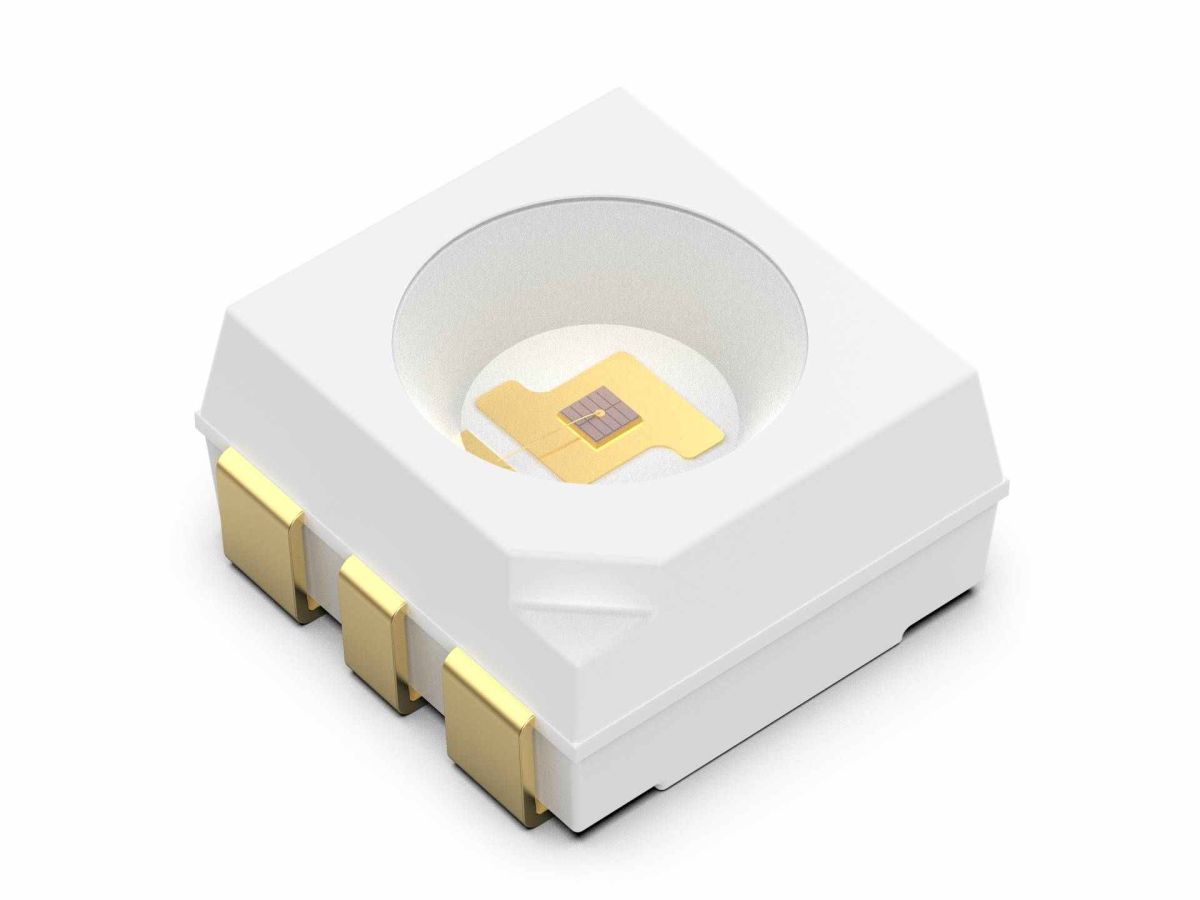

Home page Product center 3535 (3.5*3.5*1.90mm)

3535 (3.5*3.5*1.90mm)

Automotive Exterior Lighting

Characteristics of the

- Vertical table paste package, excellent anti-vulcanization performance;

- Package size 3.5*3.5*1.9mm;

- AEC-Q102 authentication.

3535 (3.5*3.5*1.90mm)
3535 (3.5*3.5*1.90mm)
3535 (3.5*3.5*1.90mm)
3535 (3.5*3.5*1.90mm)

Product Parameters

Product

Power

Color

Ta @25(TYP.)

Max current (mA)

viewing angle

°

ESD

withstand voltage()HBM

automotie

 standard

IF(mA)

vf(V)

Flux/Iv

XY/Wd

RF-A1T35-W5SE-A9

0.5W

White

150

3.0-3.4

55.3-61.2-67.8-75.3

ZG1/ZG2

(0.326,0.345)

180

120°

8000

AEC-Q101

RF-A1T35-WYSE-A9

0.5W

PC Amber

150

3.0-3.4

40.9-45.3-50-55.3

5E

0.572,0.417

180

120°

8000

AEC-Q101

RF-OMRA35TS-AB-J

0.5W

Red

150

2.0-2.6

19.6-21.8-24.2-26.9

617.5-620-622.5-625

160

120°

8000

AEC-Q101

RF-A2T35-R15E-R4

0.5W

Red

150

2.0-2.6

24.2-26.9-30-33.4

612.5-615-617.5-620

160

120°

8000

AEC-Q101

RF-A2T35-R30E-R4

0.5W

Red

150

2.0-2.6

24.2-26.9-30-33.4

627.5-630-632.5-635

160

120°

8000

AEC-Q101

RF-A2T35-Y93E-Y6

0.5W

Yellow

150

2.0-2.6

19.6-21.8-24.2-26.9

587-589.5-592-594.5

160

120°

8000

AEC-Q101

RF-A4T35-R15E-R4

0.5W

Red

150

2.0-2.6

24.2-26.9-30-33.4

612.5-615-617.5-620

160

120°

8000

AEC-Q102

RF-A4T35-R20E-R4

0.5W

Red

150

2.0-2.6

17.7-19.6-21.8-24.2

617.5-620-622.5-625

160

120°

8000

AEC-Q102

RF-A4T35-R30E-R4

0.5W

Red

150

2.0-2.6

13-14.4-16.0-17.7

627.5-630-632.5-635

160

120°

8000

AEC-Q102
