Module & Light Strips

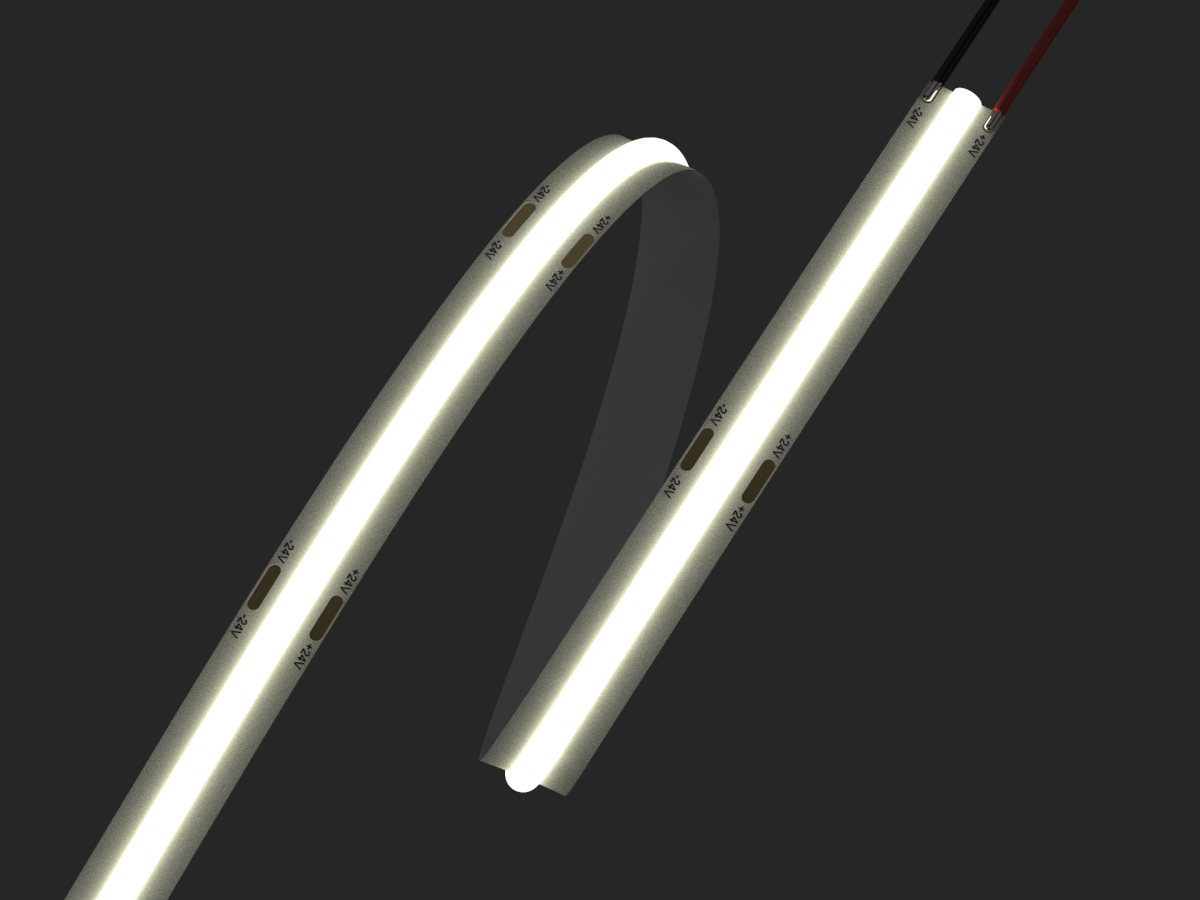

- Linear light strip without light spot, light Angle 180°, CRI> 90, up to 130LM/W, waterproof grade: IP20, minimum bending radius: 50mm, maximum length 5m;
- Suitable for dark slot backlight/household profile/contour hook and other supporting applications.
Product | PCB Width | LED Type | LED QTY | Cutting unit | Color | Ra | Ta @25℃(4000K.Ra80.TYP.) | Max current (mA) | viewing angle(°) | Max Length(m) | Max Waterproof class | Automotie standard | |||
Max P(W/M) | Vf(V) | Flux(lm/m) | EFF(lm/w) | ||||||||||||
RF-NW7ZZ0812-051606548-A0 | 5mm | CSP0807RGB+IC | 160LED/M | 6.25mm/CUT (1LEDs/CUT) | RGB+IC | / | RGB:12W | 5 | R:620-630nm/11LM G:520-530nm/47LM B:465-475nm/11LM RGB:55LM | / | 2400 | 120 | 3 | IP65/IP67 | CE UL ROHS |
If you're interested in our products or service, you can choose to leave your information here, and we will be in touch with you shortly.
- RGB full-color linear light strip without light spot, luminescent Angle 180°, waterproof rating: IP20, minimum bending radius: 50mm, maximum service length of single end power supply 5m;
- Widely applicable to all kinds of RGB dimming controllers;
- Suitable for dark slot backlight/contour hook and other supporting applications, home and entertainment area environment application effect switching excellent.
- Ultra-high density, uniform luminescence, 350 LEDs/ M;
- Linear luminescence;
- Small size LED, second only to LED 2216;
- High reliability, strong bending resistance.
- Ultra-high density, uniform luminescence, 700 LEDs/ M;
- Linear luminescence, no black spots;
- minimum size LED;
- High reliability, strong bending resistance.
- High voltage 220V linear lamp strip without light spot, CRI> 90, waterproof grade: IP67 (need to be used with silica gel sleeve), minimum bending radius: 100mm;
- Directly connected with the mains, no need to connect the power supply, constant current design, maximum use length of 50 meters, the brightness of the end of the same;
- Suitable for outdoor lighting, dark slot backlighting/household profile/contour edge matching applications.
- SPI magic color linear light strip without light spot, light Angle 180°, CRI> 90,100 LM/W, single end power supply maximum service length 5m;
- Use IC:SPI-P923F;
- Suitable for dark slot backlight/contour hook and other supporting applications, can achieve a variety of monochromatic transformation effects: gradient, flow, running lights and other effects.
- Linear light strip without light spot, light Angle 180°, CRI> 90,100 LM/W, single end power supply maximum service length 5m;
- Three kinds of integrated power products, customers can freely choose power consumption applications;
- Suitable for dark slot backlight/contour hook and other supporting applications.
- Linear light strip without light spot, light Angle 180°, CRI> 90, up to 100LM/W, waterproof grade: IP20, minimum bending radius: 50mm, single end power supply maximum use length 10m, to achieve the end brightness consistency, no difference;
- Suitable for dark slot backlight/household profile/contour hook and other supporting applications.
- Linear light strip without light spot, light Angle up to 360°, waterproof rating: IP20, minimum bending radius: 50mm, maximum service length of single end power supply 5m;
- CRI> 90, up to 110LM/W, suitable for dark slot backlight/household profile/contour hook and other supporting applications.
- RGBW four-in-one linear lamp strip without light spot, light Angle 180°, waterproof rating: IP20, minimum bending radius: 50mm, maximum service length of single end power supply 5m;
- Realize up to thousands of color distribution, widely applicable to all kinds of RGBW dimming controller;
- Suitable for dark slot backlight/contour hook and other supporting applications, home and entertainment area environment application effect switching excellent.
- High quality 3014 LED, 120LED/M;
- Side glow, excellent uniformity and color consistency;
- Support project customization and provide the most professional design;
- Ideal solution for cabinet/shelf/display cabinet lighting.
- Linear light strip without light spot, light Angle 180°, waterproof grade: IP20, minimum bending radius: 50mm, maximum service length of single end power supply 5m;
- CRI> 80,95LM/W, adjustable color temperature range: 1800~6500K or 2700~6500K;
- Only applicable to non-polar CCT dimming and toning controllers on the market;
- Suitable for dark slot backlight/contour hook and other supporting applications, home and office area environment application effect switching excellent.
- Linear light strip without light spot, light Angle 180°, waterproof grade: IP20, minimum bending radius: 50mm, maximum service length of single end power supply 5m;
- CRI> 80,95 LM/W, adjustable color temperature range: 1800~6500K or 2700~6500K;
- Widely applicable to CCT dimming and color controller;
- Suitable for dark slot backlight/contour hook and other supporting applications, home and office area environment application effect switching excellent.
- Linear light strip without light spot, light Angle 180°, ultra-short shear unit, CRI> 90, up to 100LM/W, waterproof grade: IP20, minimum bending radius: 50mm, maximum length 5m;
- Suitable for dark slot backlight/household profile/contour hook and other supporting applications.
- Linear lamp strip without light spot, light Angle 180°, waterproof grade: IP20, minimum bending radius: 50mm, maximum service length 5m;
- Suitable for dark slot backlight/household profile/contour hook and other supporting applications.
- Linear lamp strip without light spot, light Angle 180°, waterproof grade: IP20, minimum bending radius: 50mm, maximum service length 5m;
- Suitable for dark slot backlight/household profile/contour hook and other supporting applications.
- Linear lamp strip without light spot, light Angle 180°, waterproof grade: IP20, minimum bending radius: 50mm, maximum service length 5m;
- Suitable for dark slot backlight/household profile/contour hook and other supporting applications.
- Soft light/uniform light: the thick flexible silicone sheath can be used as a light diffuser to make the light more uniform, even if the dark area can not be seen at close distance;
- UV/corrosion resistance: neon tube material is silica gel, can be used for outdoor environments long-term direct sunlight does not yellow;
- Good flexibility: can bend or twist into different shapes
- Large luminescent surface, to meet the needs of customer product continuation;
- According to different application needs to provide a variety of optional packaging styles, can provide front and side stickers, different strength to meet the various needs of hard and soft lamp;
- It is applied to the bulletin board project of the community, the advertisement board of the bus and subway, the construction display project, the exhibition center, etc.
- High cost performance;
- Single BIN LED ensures color consistency;
- Constant pressure type brightness up to 125lm/W;
- Support project customization and provide the most professional design.
- Use 5050 LED, built-in 5 chips: RGB+ warm white + cold white, 60LED/M;
- Color can be regulated to create a variety of lighting possibilities;
- Intelligent control via Bluetooth or WiFi;
- Wide application: suitable for a variety of indoor and outdoor applications, such as living room, kitchen, under the cabinet, dining room, bedroom, upstairs, party decoration, stairs, wedding.
- Color temperature adjustable from warm white (2700K) to cold white (6500K);
- Color consistency control within 3 steps, 60 LED (warm white) + 60 LED (cold white) /M;
- Intelligent control via Bluetooth or WiFi;
- Widely used: can be used as cabinet lamp, makeup mirror lamp, room lamp, desk lamp, etc.
- Special design: built-in IC, single LED control;
- Rainbow effect: the dimmable and colored LED light strip shows the static and dynamic effect better than the ordinary LED light strip;
- Wide application: suitable for bar, dining room, bedroom, upstairs, kitchen, porch and living room decoration, especially suitable for Christmas, Halloween, parties, weddings and other festivals and events.
-2835 LED, IP67, 120LED/ meter;
- Soft light/uniform light: the thick flexible silicone sheath can be used as a light diffuser to make the light more uniform, even if the dark area can not be seen at close distance;
- UV/corrosion resistance: neon tube material is silica gel, can be used for outdoor environment long-term direct sunlight does not yellowing;
- Good flexibility: can bend or twist into different shapes
- High light efficiency, good color uniformity;
- Good heat dissipation, PCB board thickness: 1.5mm, thermal conductivity: 1.5W/MK, copper thickness is 75 microns;
- The design of the module is excellent, and the voltage difference between the head and tail of the four modules together is less than 0.3V;
- The module can change the color temperature every 100K, the explicit can change from 81 to 95;
Main application scenarios: factory workshop, car wash, gym, office, home, bookstore, conference room, hospital, campus, etc.
- By mixing and pasting different power lamp beads and different Angle lenses, the whole lamp is better and uniform, and the dark area in the middle of the ceiling lamp is solved, and the utility model patent of appearance is applied.
Patent Number: 201420259908.x
Main application of ceiling light: home, office, hotel, etc
- The whole lamp thickness is thin, good uniformity. The subsequent lamp power to increase, better heat resistance, brightness improvement, module will have a greater room for price reduction;
- This product was first developed and applied for the appearance utility model patent;
Patent number: 201320798184.1
Ruifeng outdoor street lamp module is suitable for urban road, expressway, main road, secondary road, branch road and residential lighting;
Projectors ARE WIDELY USED IN ROAD LIGHTING, AIRPORT/PORT LIGHTING, STADIUM LIGHTING, EXHIBITION HALL LIGHTING, HIGH POLE lighting square lighting, etc.
- High light efficiency, good color uniformity;
- module heat dissipation, PC casing Ruifeng private mold, finished product can pass 65° ball pressure test;
- Finished waterproof grade IP68;
- Constant voltage scheme, thermal current error can be controlled within 5%.
Ruifeng refrigerator lamp module mainly uses freezer, according to the structure is divided into: vertical, horizontal, semi-vertical, combined, island, island and so on.
- Experience in cooperation with large factories without quality problems;
- Rich in color;
- Can be developed on site.
- Industry first;
- Mass production with excellent consistency of light and color;
- Panchromatic region, full display finger, full spectrum;
- Compact and flexible, suitable for different width, different density, different combination of light strip light belt needs;
- LM-80
- MSL3
- Good consistency of RGB mixed white light;
- can be divided by color light and mixed white light;
- LM-80
- According to different application needs to provide a variety of optional packaging styles, can provide front and side stickers, different strength to meet the various needs of hard and soft lamp;
- It is applied to the bulletin board project of the community, the advertisement board of the bus and subway, the construction display project, the exhibition center, etc.
