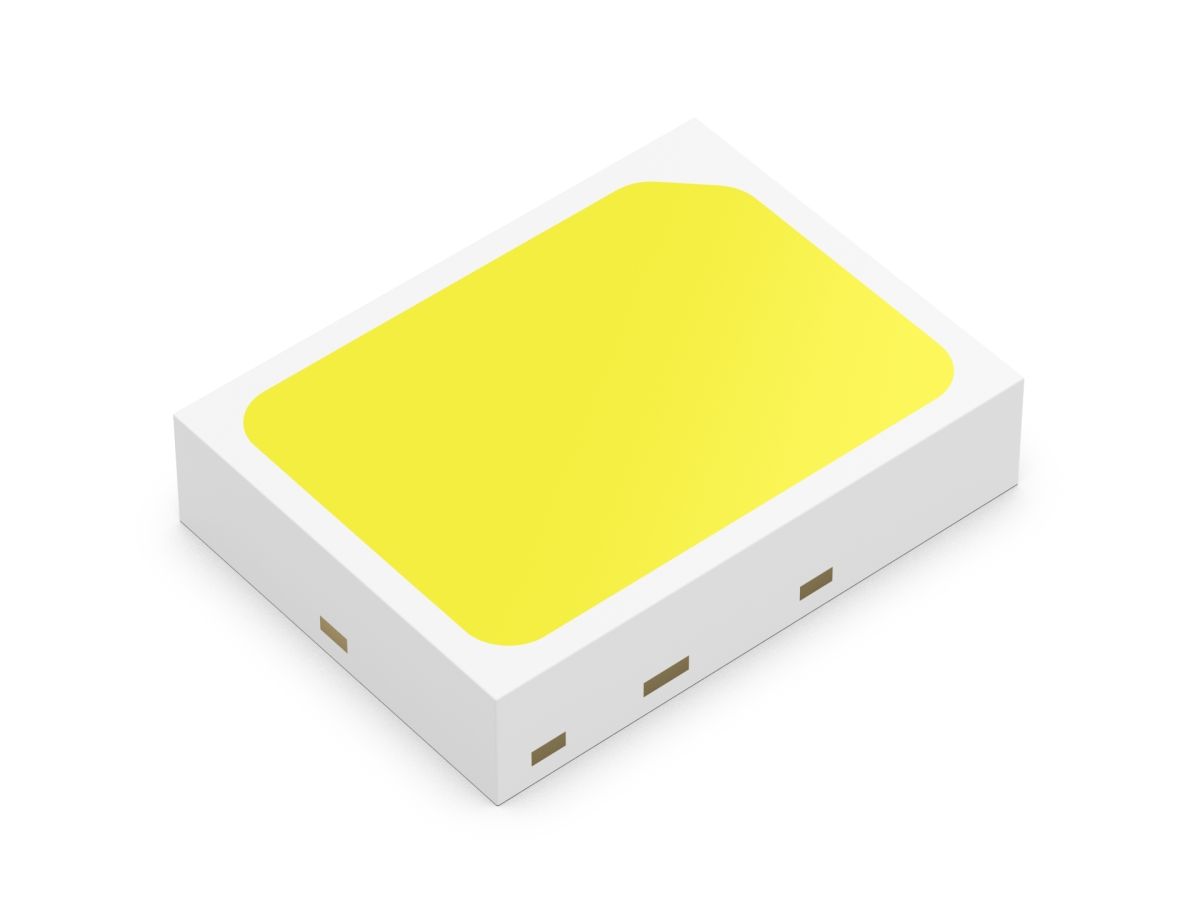

Automotive Interior Lighting
- Vertical table paste package, excellent anti-vulcanization performance;
- Package size 2.7*2.0*0.55mm;
- AEC -- Q102 certification
Product | Power | Color | Ta @25℃(TYP.) | Max current (mA) | viewing angle （°） | ESD withstand voltage()HBM | automotie standard | |||
IF(mA) | vf(V) | Flux/Iv | XY/Wd | |||||||
RF-A3E27-W60E-B1 | 0.5W | White | 150 | 2.8-3.4 | 55.3-61.2-67.8-75.3-83.7 | VM1/VM2/VM3/VM4/VM5/VM6/VM7 | 240 | 120° | 8000 | AEC-Q102 |
RF-A3E27-W60H-B3 | 1.0W | White | 350 | 2.8-3.4 | 105-117-130-144 | VM1/VM2/VM3/VM4/VM5/VM6/VM7 | 420 | 120° | 8000 | AEC-Q102 |
RF-A3E27-WYSE-B1 | 0.5W | PC Amber | 150 | 2.8-3.4 | 40.9-45.3-50-55.3-61.2 | AM1 （0.572,0417） | 240 | 120° | 8000 | AEC-Q102 |
RF-A3E27-WYSG-B3 | 1.0W | PC Amber | 300 | 2.8-3.4 | 67.8-75.3-83.7-93.2 | AM1 （0.572,0417） | 360 | 120° | 8000 | AEC-Q102 |
RF-A4E27-R15E-R4 | 0.5W | Red | 150 | 2.0-2.6 | 26.9-30-33.4-37 | 612.5-615-617.5-620 | 200 | 120° | 8000 | AEC-Q102 |
RF-A4E27-R22E-R4 | 0.5W | Red | 150 | 2.0-2.6 | 24.2-26.9-30-33.4-37 | 617.5-620-622.5-625 | 200 | 120° | 8000 | AEC-Q102 |
RF-A4E27-R30E-R4 | 0.5W | Red | 150 | 2.0-2.6 | 16-17.7-19.6-24.2 | 627.5-630-632.5-635 | 200 | 120° | 8000 | AEC-Q102 |
RF-A4E27-R15H-S4 | 1.0W | Red | 350 | 2.0-2.6 | 55.3-61.2-67.8-75.3 | 612.5-615-617.5-620 | 420 | 120° | 8000 | AEC-Q102 |
RF-A4E27-R15H-S6 | 1.0W | Red | 350 | 2.0-2.6 | 61.2-67.8-75.3-83.7 | 612.5-615-617.5-620 | 420 | 120° | 8000 | AEC-Q102 |
RF-A4E27-R22H-S1 | 1.0W | Red | 350 | 2.0-2.6 | 50-55.3-61.2-67.8 | 617.5-620-622.5-625 | 420 | 120° | 8000 | AEC-Q102 |
RF-A4E27-R30H-S4 | 1.0W | Red | 350 | 2.0-2.6 | 40.9-45.3-50-55.3 | 627.5-630-632.5-635 | 420 | 120° | 8000 | AEC-Q102 |
RF-A4E27-R15M-S6 | 2.0W | Red | 700 | 2.2-2.8 | 93.2-105-117 | 612.5-615-617.5-620 | 840 | 120° | 2000 | AEC-Q102 |
RF-A4E27-R22M-S2 | 2.0W | Red | 700 | 2.2-2.8 | 83.7-93.2-105-117 | 617.5-620-622.5-625 | 700 | 120° | 2000 | AEC-Q102 |
RF-A4E27-Y92E-Y4 | 0.5W | Yellow | 150 | 2.0-2.6 | 19.6-21.8-24.2-26.9 | 587.5-590-592.5-595 | 180 | 120° | 2000 | AEC-Q102 |
RF-A4E27-Y92H-S4 | 1.0W | Yellow | 350 | 2.0-2.6 | 40.9-45.3-50-55.3 | 587.5-590-592.5-595 | 420 | 120° | 2000 | AEC-Q102 |
December 25, 2023
December 25, 2023
December 25, 2023
December 25, 2023
December 25, 2023
December 25, 2023
December 25, 2023
December 25, 2023
December 25, 2023
December 25, 2023
December 25, 2023
December 25, 2023
If you're interested in our products or service, you can choose to leave your information here, and we will be in touch with you shortly.
- Applied to switches, keys, etc.;
- Vertical table paste package, a variety of colors can be selected;
- Package size 2.2*1.4*1.3mm, small size for flexible design;
- AEC-Q101 certification.
- Applied to switches, keys, etc.;
- Vertical table paste package, a variety of colors can be selected;
- Package size 1.6*0.8*0.55mm, small size for flexible design;
- AEC-Q101 certification.
- Applied to switches, instruments, buttons, etc.;
- Vertical table paste package, a variety of colors can be selected;
- Package size 3.5*2.8*1.85mm;
- AEC-Q101 certification.
- Vertical table paste package, excellent anti-vulcanization performance;
- Package size 3.5*2.8*3.25mm, a variety of colors optional;
- AEC-Q102 authentication.
- Vertical table paste package, excellent anti-vulcanization performance;
- Package size 3.5*2.8*3.5mm, a variety of colors optional;
- AEC-Q102 authentication.
- Vertical table mount package;
- EMC material, package size 3.0*1.4*0.52mm;
- AEC-Q102 authentication.
- PLCC2 Package
- Extremely wide viewing angle.
- Suitable for all SMT assembly and solder process.
- Available on tape and reel.
- Moisture sensitivity level: Level 2.
- Compliance with RoHS and REACH.
- Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101 Stress Test Qualification for Automotive Grade Discrete Semiconductors
- PLCC4 Package.
- Extremely wide viewing angle.
- Suitable for all SMT assembly and solder process.
- Available on tape and reel.
- Moisture sensitivity level: Level 3.
- Compliance with RoHS and REACH.
- Qualifications: The product qualification test plan is based on the guidelines of AEC-Q102Stress Test Qualification for Automotive Grade Discrete Semiconductors
- PLCC4 Package.
- Extremely wide viewing angle.
- Suitable for all SMT assembly and solder process.
- Available on tape and reel.
- Moisture sensitivity level: Level 2.
- Compliance with RoHS and REACH.
- Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101Stress Test Qualification for Automotive Grade Discrete Semiconductors
- Vertical table paste package, excellent anti-vulcanization performance;
- Package size 3.5*3.5*1.9mm;
- AEC-Q102 authentication.
- EMCPackage.
- Extremely wide viewing angle.
- Suitable for all SMT assembly and solder process.
- Available on tape and reel.
- Moisture sensitivity level: Level 2.
- Compliance with RoHS and REACH.
- Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101 Stress Test Qualification for Automotive Grade Discrete Semiconductors
- EMCPackage.
- Extremely wide viewing angle.
- Suitable for all SMT assembly and solder process.
- Available on tape and reel.
- Moisture sensitivity level: Level 2.
- Compliance with RoHS and REACH.
- Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101 Stress Test Qualification for Automotive Grade Discrete Semiconductors
- EMCPackage.
- Extremely wide viewing angle.
- Suitable for all SMT assembly and solder process.
- Available on tape and reel.
- Moisture sensitivity level: Level 2.
- Compliance with RoHS and REACH.
- Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101 Stress Test Qualification for Automotive Grade Discrete Semiconductors
