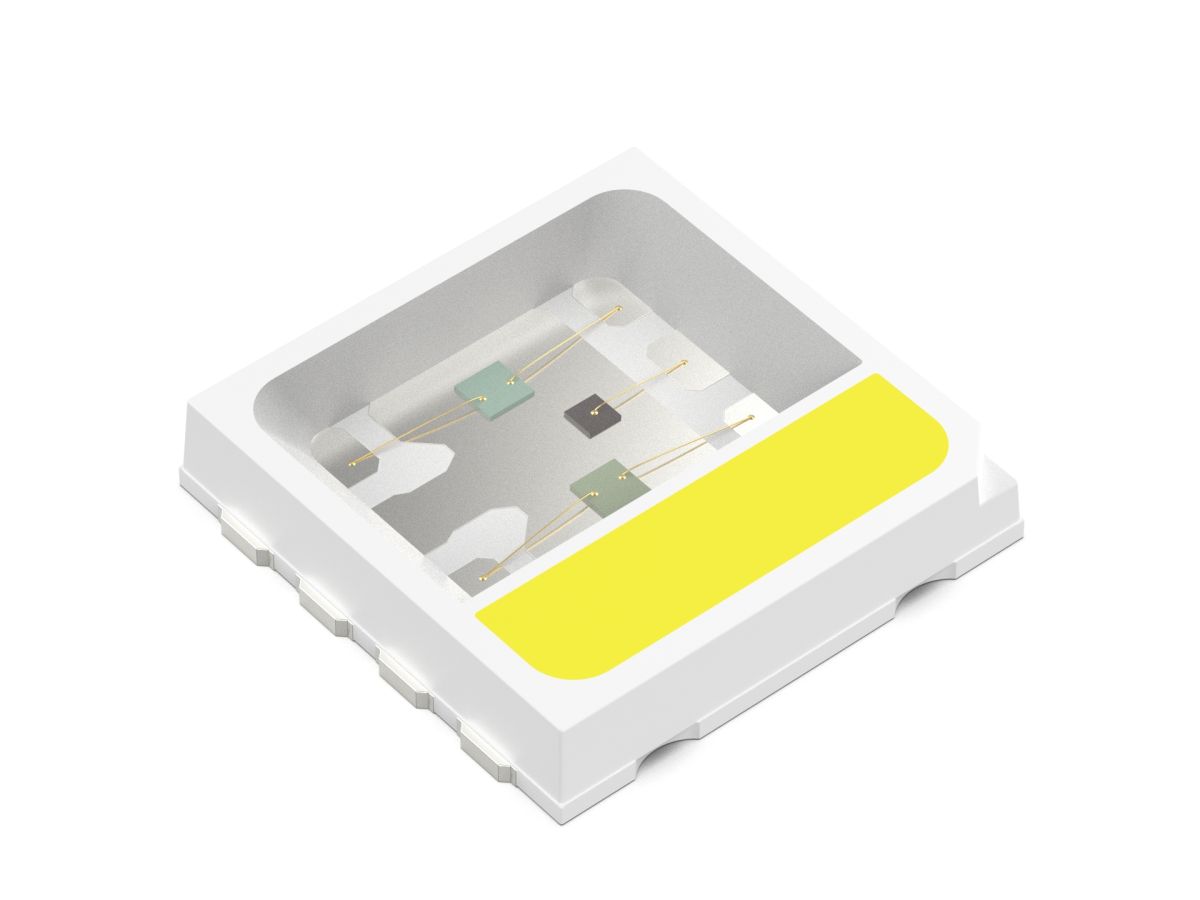

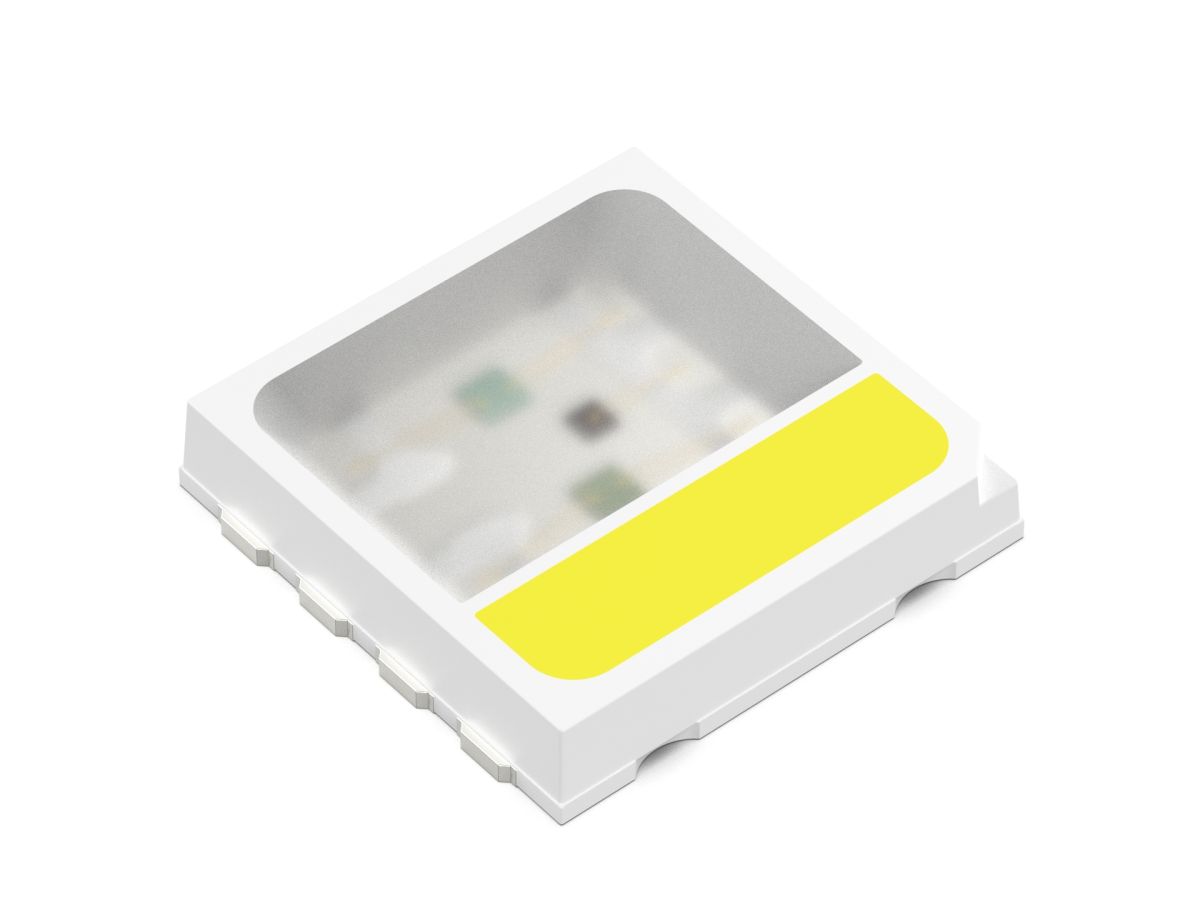

Color LED
- Color temperature can be customized;
- High integration, rich color, excellent mixing effect;
- Compact structure to meet the dense arrangement of lamp beads;
- A variety of light color adjustable and controllable.
| Part No. | If(mA) | Ra(min) | CCT（K） | lv(mcd&lm) | Wd(nm) |
| rf-w250ts-r24w | R=G=B=W=20 | 80 | W：2300K--2500K | R:700-1200mcd | 618-623...... |
| G：1900-2400mcd | 520-525...... | ||||
| B:400-750mcd | 468-473...... | ||||
| W：6.0-8.5lm | / | ||||
| rf-w250ts-r26w | R=G=B=W=20 | 80 | W：2550K ---2750K | R:700-1200mcd | 618-623...... |
| G：1900-2400mcd | 520-525...... | ||||
| B:400-750mcd | 468-473...... | ||||
| W：6.0-9.0lm | / | ||||
| RF-W2SA50TS-R30W | R=G=B=W=20 | 80 | W：3200K | R:700-1200mcd | 618-623...... |
| G：1900-2400mcd | 520-525...... | ||||
| B:400-750mcd | 468-473...... | ||||
| W：6.0-9.0lm | / | ||||
| rf-w250ts-r35w | R=G=B=W=20 | 80 | W：3300K—3600K | R:700-1200mcd | 618-623...... |
| G：1900-2400mcd | 520-525...... | ||||
| B:400-750mcd | 468-473...... | ||||
| W：6.0-9.0lm | / | ||||
| rf-w250ts-r40w | R=G=B=W=20 | 80 | W：4000K | R:700-1200mcd | 618-623...... |
| G：1900-2400mcd | 520-525...... | ||||
| B:400-750mcd | 468-473...... | ||||
| W：6.0-9.0lm | / | ||||
| RF-W2SA50TS-R60W | R=G=B=W=20 | 80 | W：6000K | R:700-1200mcd | 618-623...... |
| G：1900-2400mcd | 520-525...... | ||||
| B:400-750mcd | 468-473...... | ||||
| W：6.0-9.0lm | / | ||||
| RF-W7SA50TS-P * * W - J (80) show that | R=G=B=W=150 | 80 | W：2700-6500 | R：18-24lm | 615-630. |
| G：35-50lm | 520-530. | ||||
| B:8-12lm | 465-475. | ||||
| At:50-65lm | / |
If you're interested in our products or service, you can choose to leave your information here, and we will be in touch with you shortly.
- Deep blue (450 nm), hyper red (660 nm) and Far red (730 nm) to provide the light for the photosynthesis
- Q90 Report are available
- Application：Horticulture Lighting /Architectural Lighting/ Phototherapy
- Provide UVA full band coverage program and application solutions
- Customized solutions can be provided according to customer applications
- Full-power, high-brightness series coverage to meet different applications.
- Good color consistency, good brightness consistency
- WPE 4.5% for mass-produced series products
- Low thermal resistance, low attenuation, long life up to 10000H.
- Provide UVA full band coverage program and application solutions.
- Provide customized products according to customer's application
- Full power, high brightness series coverage to meet different applications
- Sterilization effect up to 99.99%, and no bacteria growth
- Mass production series products WPE 4.5%
- Low thermal resistance, low attenuation, long life up to 10000H.
- Provide UVA full band coverage program and application solutions
- Customized solutions can be provided according to customer applications
- Full-power, high-brightness series coverage to meet different applications.
- Good color consistency, good brightness consistency
- WPE 4.5% for mass-produced series products
- Low thermal resistance, low attenuation, long life up to 10000H.
- Provide UVA full band coverage program and application solutions
- Customized solutions can be provided according to customer applications
- Full-power, high-brightness series coverage to meet different applications.
- Good color consistency, good brightness consistency
- WPE 4.5% for mass-produced series products
- Low thermal resistance, low attenuation, long life up to 10000H.
- Provide UVA full band coverage program and application solutions
- Customized solutions can be provided according to customer applications
- Full-power, high-brightness series coverage to meet different applications.
- Good color consistency, good brightness consistency
- WPE 4.5% for mass-produced series products
- Low thermal resistance, low attenuation, long life up to 10000H.
- Provide UVA full band coverage program and application solutions
- Customized solutions can be provided according to customer applications
- Full-power, high-brightness series coverage to meet different applications.
- Good color consistency, good brightness consistency
- WPE 4.5% for mass-produced series products
- Low thermal resistance, low attenuation, long life up to 10000H.
- Provide UVA full band coverage program and application solutions
- Customized solutions can be provided according to customer applications
- Full-power, high-brightness series coverage to meet different applications.
- Good color consistency, good brightness consistency
- WPE 4.5% for mass-produced series products
- Low thermal resistance, low attenuation, long life up to 10000H.
- 1W/㎡ high heat dissipation ceramic3535
- High photosynthetic efficiency
- Q90≥36KH
-Main wavelength are 450/660/730nm, covering PAR 400-700nm, can do other custom special wavelength from 365-800nm
-0.2-0.5 W Power，PCT2835, single color light
- High power,High brightness
- Good reliability
- Rich Color
- Uniform color
- Customizable Specification
- High power,High brightness
- Good reliability
- Rich Color
- Uniform color
- Customizable Specification
- Can be applicated in Plant lighting, Landscape lighting, Stage lighting
- Support customized products based on the Ceramic 3535 package
- Can be applicated in Plant lighting, Landscape lighting, Stage lighting
- Support customized products based on the Ceramic 3535 package
- MSL3
- Good consistency of RGB mixed white light;
- can be divided by color light and mixed white light;
- LM-80
- High energy efficacy in μmol/J
- Deep blue (450 nm), hyper red (660 nm) and Far red (730 nm) to provide the light for the photosynthesis
- Q90 Report are available
- Application：Horticulture Lighting /Architectural Lighting/ Phototherapy
- High energy efficacy in μmol/J
- Deep blue (450 nm), hyper red (660 nm) and Far red (730 nm) to provide the light for the photosynthesis
- Q90 Report are available
Application：Horticulture Lighting /Architectural Lighting/ Phototherapy
- Simple structure, easy to use;
- Excellent product performance, beautiful price;
- Widely used in biological testing, nail art and other fields
- Simple structure, easy to use;
- Excellent product performance, high cost performance.
- Long life, stable light color; High efficiency;
- High air tightness and corrosion resistance; High reliability in high temperature and humidity environment;
- All kinds of color light and full spectrum white light for choice, and can be customized according to the needs of development;
- Medium and small power, full range of products to meet various needs;
-2835 color series (covering 450/660/730 band, can be customized to cover PAR400-800nm);
-2835 chip plus phosphor color series (low cost, customizable plant lighting band and spectrum);
-2835 white light full spectrum series (simulated sunlight spectrum or customized spectrum, to meet the growth cycle of various plants, can also improve the humanized lighting environment of plant factories).
- Main wavelength are 450/660/730nm, customizable view angle with 30°、60°、120° . With light concentration or wide illumination characteristics, no need to equip with other optical components.
- 1.0W Power, EMC3030, single color light
- Long life, stable light color;
- High air tightness and corrosion resistance;
- Various light colors, and can be customized development according to need.
-Rich and diverse products, can provide customers with customized solutions;
- Used in residential district advertising board project, bus and subway advertising board, building display project, exhibition center, etc.;
- LM-80。
- Experience in cooperation with large factories without quality problems;
- Rich in color;
- Can be developed on site.
- Experience in cooperation with large factories without quality problems;
- Rich in color;
- Can be developed on site.
- Dachang cooperation experience, no quality problems;
- colorful;
- Can be fixed point development.
- Global initiative, patented products (counterfeiting will be investigated);
- High integration, rich color, excellent mixing effect;
- Compact structure to meet the dense arrangement of lamp beads;
- Light color adjustable and controllable, a product can achieve unlimited possibilities.
