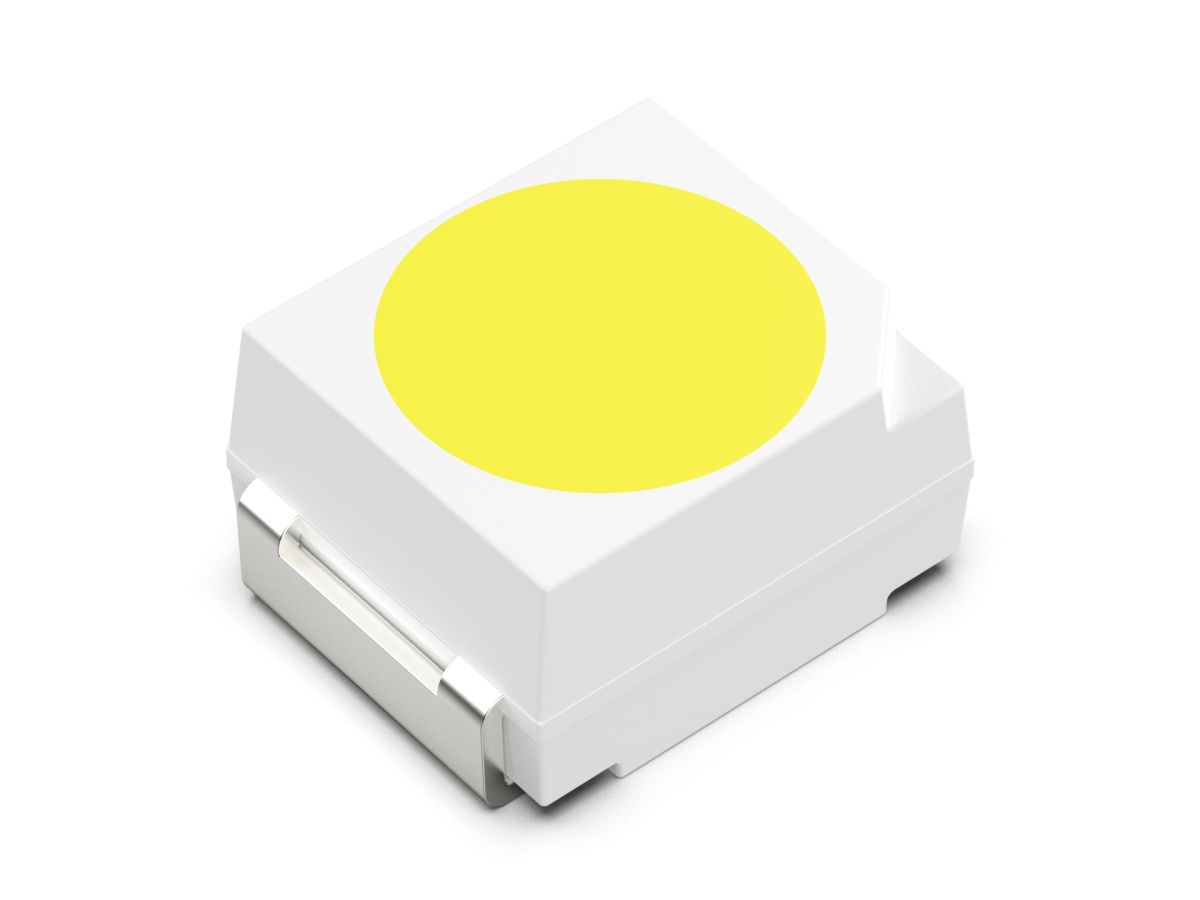

Automotive Interior Lighting
- Applied to switches, instruments, buttons, etc.;
- Vertical table paste package, a variety of colors can be selected;
- Package size 3.5*2.8*1.85mm;
- AEC-Q101 certification.
Product | Power | Color | Ta @25℃(TYP.) | Max current (mA) | viewing angle （°） | ESD withstand voltage ()HBM | automotie standard | |||
IF(mA) | vf(V) | Flux/Iv | XY/Wd | |||||||
RF-WNRA30DS-ED(1) | 0.06W | White | 20 | 2.7-3.1 | 2300-2550-2800-3150- 3500 | CO2/CO1/CT1 （0.3325,0.3405） | 30 | 120° | 2000 | AEC-Q101 |
RF-WMHA30DS-ED-Z | 0.06W | White | 20 | 2.5-3.1 | 2050-2300-2550-2800-3150 | CX2/CX3/CE2/CE3/CEA/CXB （0.3181,0.3104） | 30 | 120 | 8000 | AEC-Q101 |
RF-A1A30-W7A2-A3 | 0.06W | White | 5 | 2.5-3.0 | 180-230-280-350 | PP7/PP8/PP9 （0.304,0.315） | 30 | 120 | 8000 | AEC-Q101 |
RA-A30Z-W01B-J23 | 0.06W | White | 5 | 2.5-3.0 | 430-530-650-800 | W1A/W1B/W1C （0.3025,0.313） | 30 | 120 | 8000 | AEC-Q101 |
RF-A1A30-WB12-A2 | 0.06W | White | 5 | 2.5-3.1 | 430-530-650-800 | LLO LLA LLB （0.2145,0.2） | 30 | 120 | 8000 | AEC-Q101 |
RF-BWRA30DS-EG-Z | 0.06W | White | 20 | 2.5-3.1 | 1800-2300-2800-3500 | R00/R01/R02 （0.283,0.2777） | 30 | 120 | 8000 | AEC-Q101 |
RF-A1A30-W1B1-A3 | 0.06W | White | 3 | 2.5-3.0 | 120-140-170-200 | R00/R01/R02/R0A （0.2807,0.2737） | 30 | 120 | 2000 | AEC-Q101 |
RF-WNRA30DS-ED-DZ | 0.06W | White | 15 | 2.8-3.4 | 1200-1500-1800-2300 | FFJ/FFK/FFL （0.2775,0.271） | 30 | 120 | 8000 | AEC-Q101 |
RF-A1A30-WD92-A31 | 0.06W | White | 5 | 2.5-3.0 | 180-230-280-350 | CB7/CB8/CB9 （0.269,0.26） | 30 | 120 | 8000 | AEC-Q101 |
RF-BWRA30DS-XB-Z | 0.06W | White | 5 | 2.5-3.0 | 1000-1200-1500-1800 | TC1/TC2/TC3 （0.2027,0.1724） | 30 | 120° | 2000 | AEC-Q101 |
RF-A1A30-WA02-A4 | 0.06W | White | 5 | 2.5-3.0 | 350-430-530-650 | LL1/LL2/LL3 （0.1935,0.17） | 30 | 120° | 2000 | AEC-Q101 |
RF-BWRA30DS-AQ-BZ | 0.06W | White | 5 | 2.5-3.1 | 350-430-530-650 | L01/L02/L03 （0.22,0.21） | 30 | 120° | 2000 | AEC-Q101 |
RF-BWRA30DS-KK-BZ | 0.06W | White | 5 | 2.5-3.0 | 150-180-230-280 | BB5/BB6/BB7 （0.1559,0.08） | 30 | 120° | 2000 | AEC-Q101 |
RF-A1A30-WYS5-A1 | 0.06W | PC Amber | 20 | 2.8-3.4 | 1200-1500-1800-2300 | 5E （0.572,0.417） | 30 | 120° | 8000 | AEC-Q101 |
RF-WMRA30DS-HH-BZ | 0.06W | PC Amber | 5 | 2.4-3.0 | 430-530-650-800 | WY1/WY2/WY3/WY | 30 | 120° | 8000 | AEC-Q101 |
RF-IMRA30DS-DC-BZ | 0.06W | PC Amber | 5 | 2.5-3.1 | 530-650-800-1000 | WL4/WL5/WH4/WH5/WQ4/WQ5 （0.424,0.404） | 30 | 120° | 8000 | AEC-Q101 |
RF-A1A3F-R165-R1 | 0.04W | Red | 20 | 1.8-2.5 | 800-1000-1200-1500 | 615-617.5-620 | 30 | 120° | 8000 | AEC-Q101 |
RF-OMRA30TS-AA | 0.04W | Red | 20 | 1.8-2.5 | 650-800-1000-1200 | 617.5-620-622.5-625-627.5 | 30 | 120° | 8000 | AEC-Q101 |
RF-OMRA30TS-CF-Z | 0.04W | Red | 20 | 1.8-2.5 | 650-720-800-900 | 627.5-630-632.5-635 | 30 | 120° | 8000 | AEC-Q101 |
RF-OURA30TS-RR | 0.04W | Red | 20 | 1.8-2.5 | 100-120-150-180 | 627.5-630-632.5-635 | 30 | 120° | 2000 | AEC-Q101 |
RF-RSRA30TS-DD | 0.04W | Red | 20 | 1.8-2.5 | 350-430-530-650 | 627.5-630-632.5-635 | 30 | 120° | 2000 | AEC-Q101 |
RF-RURA30TS-DD-Z加齐纳 | 0.04W | Red | 20 | 1.8-2.4 | 100-120-150-180 | 627.5-630-632.5-635 | 30 | 120° | 8000 | AEC-Q101 |
RF-A1A30-R315-R0加齐纳 | 0.04W | Red | 20 | 1.8-2.5 | 350-430-530-650 | 627.5-630-632.5-635 | 30 | 120° | 8000 | AEC-Q101 |
RF-AURA30TS-ED(1) | 0.04W | Orange | 20 | 1.9-2.3 | 200-260-330-430 | 600-602.5-605-607.5-610 | 30 | 120° | 2000 | AEC-Q101 |
RF-YMRA30TS-AF-Z | 0.04W | Yellow | 20 | 1.8-2.5 | 650-800-1000-1200 | 585-587.5-590-592.5-595 | 30 | 120° | 8000 | AEC-Q101 |
RF-YURA30TS-AE-Z | 0.04W | Yellow | 20 | 1.8-2.5 | 200-260-300-430 | 584.5-587-589.5-592-594.5 | 30 | 120° | 8000 | AEC-Q101 |
RF-A1A3F-Y895-Y1 | 0.04W | Yellow | 20 | 1.8-2.5 | 530-650-800-1000 | 584.5-587-589.5-592-594.5 | 30 | 120° | 2000 | AEC-Q101 |
RF-AURA30TS-BB-Z | 0.04W | Yellow | 20 | 1.8-2.5 | 800-1000-1200-1500 | 584.5-587-589.5-592-594.5 | 30 | 120° | 8000 | AEC-Q101 |
RF-GNRA30TS-CF-PZ | 0.06W | Green | 2.5-3.1 | 140-170-200-230 | 527.5-530.0-532.5 | 30 | 120° | 8000 | AEC-Q101 | |
RF-GNRA30TS-CF-Z | 0.06W | Green | 20 | 3.0-3.4 | 900-1200-1500 | 520-522.5-525 | 30 | 120° | 8000 | AEC-Q101 |
RF-BNRA30DS-BB-C | 0.06W | Blue | 10 | 2.5-3.1 | 120-150-180-230 | 467.5-470.0-472.5 | 30 | 120° | 2000 | AEC-Q101 |
RF-WNRA30DS-EB-A(L) | 0.01W | White | 3 | 2.9-3.3 | 23-28-35-43-53 | M02/M03/P02/P03 （0.282,0.248） | 30 | 120° | 2000 | AEC-Q101 |
